Product Description
TR-dog® Houndmate® 100
Multi-dog Tracking and Training System
TR-dog® Houndmate® 100 multi-dog tracking and training system is mainly used to track and train multiple hunting dogs or sporting dogs in the wild. The system consists of handheld, dog collar device and mobile APP. TR-dog® handheld and dog device are sturdily built with waterproof rating of IPX7. They can withstand the most challenging hunting conditions in the wild.
Handheld of TR-dog® Houndmate® 100 multi-dog tracking and training system is a multi-dog GPS tracking and remote training device in one which works together with TR-dog® dog collar device. Users need to pair the collars with the handheld and fit the dog collars on your dogs first. Both the handheld and dog collar contain a high-precision
GPS/GLONASS/Beidou satellite receiver and a 4G mobile networking module. This ensures hound hunters or sporting dog owners can not only track and train their dogs in areas out of the coverage of mobile network but also in areas in the coverage of mobile network. The mobile App obtains the dog collar’s location and status information from the handheld via wireless communication and show it on the map pre-downloaded. You can check up to 20 dogs’ locations at one time on one map on your mobile phone. TR-dog® multi-dog tracking and training system is a set of handy devices not only for tracking dogs but also for training dogs. Dogs can be trained and controlled remotely. The system is a good buddy for hound hunters or sporting dog owners to track and train hounds or dogs in the wild.
Real-time Track

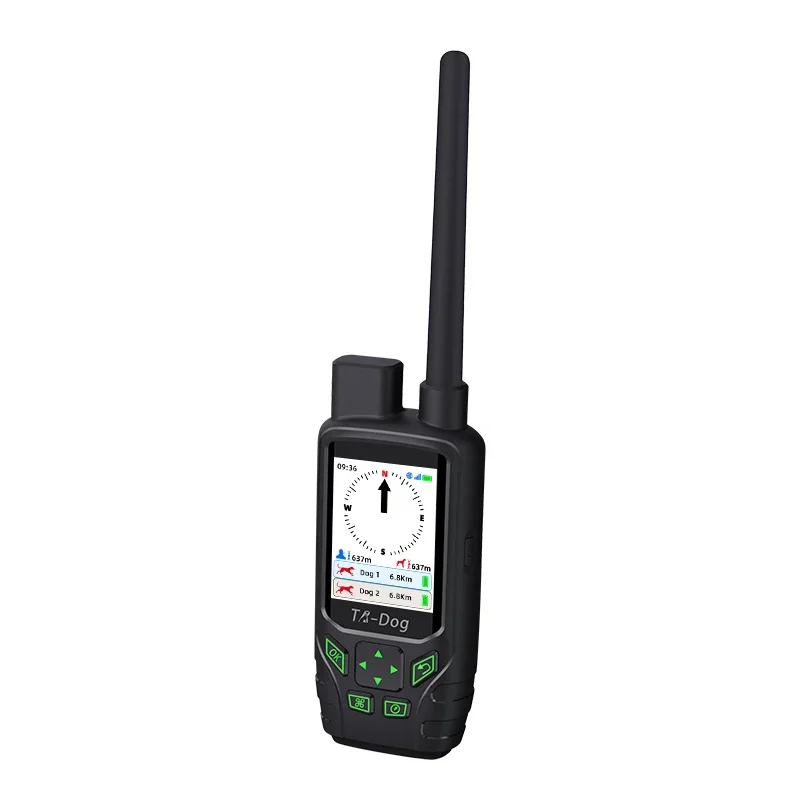

TR-dog® handheld uses a sunlight-readable 2.4-inch color display screen. It can pinpoint the locations of up to 20 dogs simultaneously within range of up to 15km at an update frequency as fast as every 2.5 seconds when hound hunters or sporting dog owners are out in the wild with no mobile network service. The tracking range is unlimited when they are in areas in the coverage of mobile network. Update frequency can be even faster.
The handheld measures and shows each dog’s distance, direction from the handheld, dog’s altitude and the remaining battery life of the dog collar device. It can track up to 20 dogs by receiving signals from paired-up TR-dog® dog collar devices. As frequently as every 5 seconds, the dog collar device transmits your dog’s position information to your handheld. There are several update rates to choose from. The fastest update rate is every 2.5 seconds, which is among industry top levels on the market. In normal situations update rate slower than every 2.5 seconds is suggested to slow the battery consuming speed.
Not only can you track your dogs on the run in real time, but also you can view your dog’s traveled track of today or of any past day on the mobile App. There are more valuable things the App can bring. You can mark locations as waypoints on the map so that you can find you way back to those locations later to avoid getting lost in the wild. You can set Geofences on the map to limit your dog’s activity range. You will receive an alarm on the mobile App when your dog reaches the lines of the set Geofences. This feature is designed to notify you in advance before your dog gets you into any trouble.
Train and Control
TR-dog® Houndmate® 100 multi-dog tracking and training system helps you train and control your dogs in the wild. Easy to access training functions are safely and effectively designed. They allow you to interact separately with each dog. There are 3 different time durations of vibration and 3 different intensity levels of stimulation for you to use to train your dogs.
You can send command to remotely turn on the LED beacon lights built in TR-dog® dog collar device to make your dog easily seen from far away in low-light conditions or at night or before it is going to run across a motor road.
Based on most hound hunters’ request the system now has a unique feature: able to hear dog’s barking sounds remotely. There are two ways for you to hear your dog’s barks remotely. One way is that you order “Sound Recording” on the handheld. The other way is that you command “Call the Collar” on the handheld and then you can hear the sounds around the dog collar in real time. Expericenced hunters can judge what status his dog is in according to his barking sound type via dog status knowledge. This can greatly help improve the hunter’s overall hunting effect and efficiency.
Main Features
* High-precision GPS/GLONASS/Beidou reception enables better satellite tracking in challenging environments than GPS alone
* Tracks up to 20 dogs at a time
* Dog’s location can be updated as often as every 2.5 seconds. It provides faster location tracking when dogs are on the run.
* Tracking ranges up to 15km out of the coverage of mobile network, whereas unlimited range in the coverage of mobile network.
* Dog’s real-time location, today’s moving track can be shown on the map pre-downloaded on the mobile App. Historical tracks on any past day can be also checked out and shown on the App.
* An alarm is triggered when a dog enters or exits a Geofence set on the App.
* Missing handheld paired-up with the dog collar can be found by the App.
* 3 different time durations of vibration
* 3 different intensity levels of stimulation
* LED beacon lights on dog collar
* Able to hear dog’s barking sounds remotely
* Tracks up to 20 dogs at a time
* Dog’s location can be updated as often as every 2.5 seconds. It provides faster location tracking when dogs are on the run.
* Tracking ranges up to 15km out of the coverage of mobile network, whereas unlimited range in the coverage of mobile network.
* Dog’s real-time location, today’s moving track can be shown on the map pre-downloaded on the mobile App. Historical tracks on any past day can be also checked out and shown on the App.
* An alarm is triggered when a dog enters or exits a Geofence set on the App.
* Missing handheld paired-up with the dog collar can be found by the App.
* 3 different time durations of vibration
* 3 different intensity levels of stimulation
* LED beacon lights on dog collar
* Able to hear dog’s barking sounds remotely
Specifications
|
Satellite systems used for positioning
|
High-precision GPS/GLONASS/Beidou
|
|
GPS Position Transmission mode
|
VHF and mobile network
|
|
Tracking Range
|
Up to 15km (out of the coverage of mobile network)
|
|
Unlimited Range (in the coverage of mobile network)
|
|
|
Location Update rate
|
every 2.5 seconds the fastest
|
|
Multi-dog Tracking
|
can track up to 20 dogs at one time
|
|
Antenna
|
Radio antenna and GPS antenna
|
|
Waterproof rating
|
IPX7
|
|
Handheld Sreen Display size
|
1.45″W x 1.93″H (3.7 x 4.9 cm); 2.4″ diag (6.1 cm)
|
|
Screen Display type
|
65-K color TFT, sunlight readable
|
|
Support Mobile APP
|
Yes
|
|
Support Wireless Communication
|
Yes
|
|
Ability to add maps
|
Yes
|
|
Waypoints/favorites/tracks
|
Yes
|
|
Track log storage
|
Yes
|
|
SIM Card
|
Micro SIM card, Support 4G network
|
|
External memory storage
|
1GB microSD™ card (included)
|
|
Battery
|
Rechargeable 18650 lithium-ion, user replaceable
|
|
Battery life
|
20-40 hours
|
|
Collar strap size
|
1” (2.54 cm)
|
|
Replaceable collar strap
|
Yes
|
|
SIM Card for collar
|
nano SIM card，Support 4G network
|
|
Brand
|
TR-dog®
|
|
Place of origin
|
China
|
|
SPECS for HANDHELD
|
|
|
Display size
|
1.45″W x 1.93″H (3.7 x 4.9 cm); 2.4″ diag (6.1 cm)
|
|
Display type
|
65-K color TFT, sunlight readable
|
|
Location Update Rate
|
Every 2.5 seconds the fastest
|
|
SIM Card
|
Micro SIM card, Support 4G network
|
|
Support Wireless Communication
|
Yes
|
|
Sound recording command
|
Yes
|
|
Support APP
|
Yes
|
|
Geofence Notification
|
An alarm is triggered when a dog enters or exits a Geofence
|
|
Find the missing handheld
|
Yes
|
|
Multi-dog Tracking
|
can track up to 20 dogs at one time
|
|
Stimulation/Vibration
|
Yes
|
|
LED beacon lights command
|
Yes
|
|
Antenna
|
Radio antenna plus GPS antenna
|
|
Battery
|
Rechargeable 18650 lithium-ion, user replaceable
|
|
Battery life
|
20-40 hours
|
|
Water rating
|
IPX7
|
|
Maps & Memory
|
|
|
Ability to add maps
|
Yes
|
|
Waypoints/favorites/tracks
|
Yes
|
|
Track log storage
|
Yes
|
|
External memory storage
|
1GB microSD™ card (included)
|
|
SPECS for DOG DEVICE
|
|
|
Supported navigation
|
High-precision GPS/GLONASS/BEIDOU
|
|
SIM Card
|
nano SIM card，Support 4G network
|
|
Sound recording
|
Yes
|
|
Geofence Notification
|
An alarm is triggered when a dog enters or exits a Geofence
|
|
Stimulation/Vibration
|
Yes
|
|
LED beacon lights
|
Yes
|
|
Antenna
|
Radio antenna plus GPS antenna
|
|
Battery
|
Rechargeable lithium-ion
|
|
Battery life
|
20-40 hours
|
|
Water rating
|
IPX7
|
|
Replaceable collar strap
|
Yes
|
|
Collar strap size
|
1” (2.54 cm)
|
In the Box
*
TR-dog®
Houndmate®
handheld
* Rechargeable user-replaceable Lithium-ion battery for handheld
*
TR-dog® Houndmate
® 100 dog collar with rechargeable lithium-ion battery
* 1″ collar strap
* 1GB microSD™ card
* Standard range radio antenna (for handheld)
* Contact point set (including 2 insulated plugs)
TR-dog®
Houndmate®
handheld
* Rechargeable user-replaceable Lithium-ion battery for handheld
*
TR-dog® Houndmate
® 100 dog collar with rechargeable lithium-ion battery
* 1″ collar strap
* 1GB microSD™ card
* Standard range radio antenna (for handheld)
* Contact point set (including 2 insulated plugs)
* Charge clip
* AC adapter (for dog collar)
* USB cables (for handheld and for dog collar)
* Manuals
* AC adapter (for dog collar)
* USB cables (for handheld and for dog collar)
* Manuals
